Color Splasher for Revit Download, Workflows & Integrations

Publisher:

File size:: 2.2 MB

Date added:: Nov 07, 2021 | Last update check: 1 minute ago

Licence:: Open-source / Free

Runs on:: Revit 2018 / 2019 / 2020 / 2021

Color Splasher for Revit allows to graphically visualize and verify the information in a model with color. It filters, selects and colours elements based on the values of a defined parameter to let you visualise if there are errors or a lack of information. The user first selects the desired category, then selects a parameter, and finally, sets colours for each value of this parameter.

Note: This app is no longer supported by developer BIM One and is now available as open source on GitHub. The community can now use and improve the add-in. Additionally, BIM One Add-Ins Manager has been retired.

Features:

Quick review of potential problems.
Facilitates monitoring of model quality.
Faster than creating view filters.
Override multiple categories at once.

Typical workflow:

Open the Color Splasher
In the filters, select a category and then a parameter to inspect
In the values displayed, you can regenerate a random color scheme using the “Refresh” button and personalize. If you want to generate a rainbow scheme, specify the first and last color and click on the “Rainbow” button.
Once all changes are made to the scheme, you can save it to reload it back when you will inspect that same parameter later.

What’s new in version 21.0.0.0:

Support for Revit 2021.

About BIM One

Virtual construction and technology BIM One Inc. is a firm specialized in project management and technologies implementation related to building information modeling (BIM). We provides BIM consulting and implementation services, technology strategies and custom software solutions.

Building information management for project owner and project manager.
Building information modeling for structural, MEPengineers and architects.
City Information Modeling (CIM) for urban planners.
BIM infra for civil engineers.
VDC for entrepreneurs.

Gallery

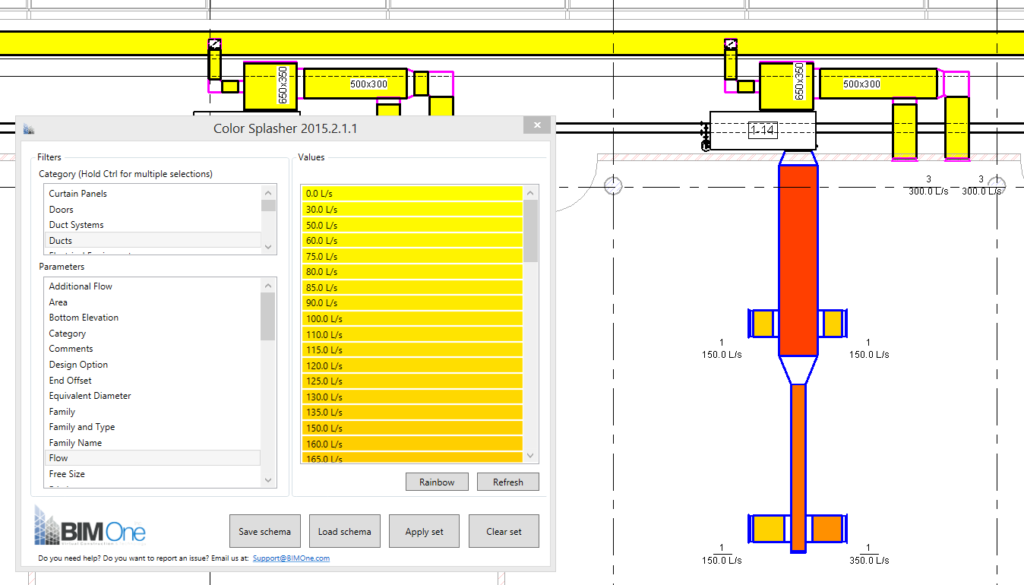

You can color in 2D views. ©apps.autodesk.com

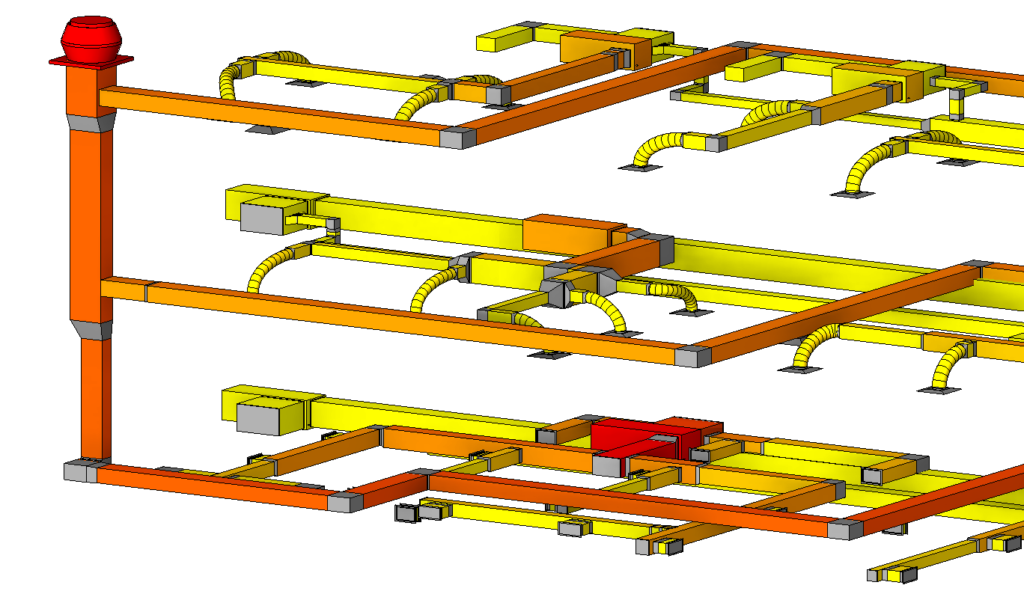

You can color MEP elements. ©apps.autodesk.com

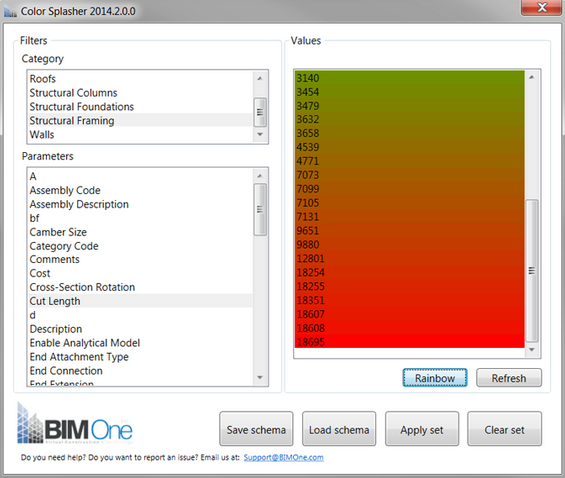

Color Rainbow. ©apps.autodesk.com
